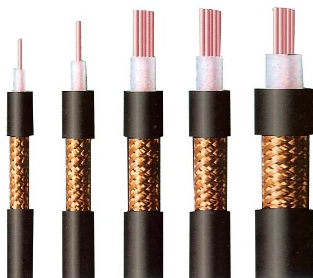

常用同轴视频电缆有哪些型号
| SYV | 实芯聚乙烯绝缘—聚氯乙烯护套同轴射频电缆 | |||||
| SEYV | 实芯聚乙烯绝缘—聚氯乙烯护套对称射频电缆 | |||||
| SWY | 稳定聚乙烯绝缘—耐光热聚乙烯护套同轴射频电缆 | |||||
| SEWY | 稳定聚乙烯绝缘—耐光热聚乙烯护套对称射频电缆 | |||||
| 型号 | 内导体 | 绝缘外径 | 电缆外径 | 计算重量 | ||
| 根数/直径 | 外径 | |||||
| SYV-50-1 | 7/0.09 | 0.27 | 0.87±0.05 | 1.9±0.10 | 7.56 | |
| SYV-50-2-1 | 7/0.15 | 0.45 | 1.5±0.10 | 2.9±0.10 | 15.45 | |
| SYV-50-2-2 | 1/0.68 | 0.68 | 2.2±0.10 | 4.0±0.20 | 30.92 | |
| SYV-50-3 | 1/0.9 | 0.9 | 3.0±0.15 | 5.0±0.25 | 45.48 | |
| SYV-50-5-1 | 1/1.37 | 1.37 | 4.6±0.20 | 7.0±0.30 | 83.18 | |
| SYV-50-5-2 | 1/1.37 | 1.37 | 4.6±0.20 | 7.6±0.30 | 120.19 | |
| SYV-50-7-1 | 7/0.76 | 2.28 | 7.3±0.25 | 10.2±0.30 | 167.99 | |
| SYV-50-7-2 | 7/0.76 | 2.28 | 7.3±0.25 | 11.2±0.30 | 244.17 | |
| SYV-50-9 | 7/0.95 | 2.85 | 9.0±0.30 | 12.4±0.40 | 237.85 | |
| SYV-50-12 | 7/1.2 | 3.6 | 12.5±0.40 | 15±0.50 | 337.1 | |
| SYV-50-15 | 7/1.54 | 4.52 | 15±0.50 | 19±0.50 | 517.75 | |
| SYV-50-17 | 19/1.04 | 5.2 | 17.3±0.70 | 22.2±0.60 | 730.14 | |
| SYV-50-23-1 | 19/1.37 | 6.85 | 23±1.0 | 28.8±0.70 | 1181.78 | |
| SYV-50-28-1 | 19/1.65 | 8.25 | 28±1.0 | 34.5±0.80 | 1387.34 | |
| SYV-75-2 | 7/0.08 | 0.24 | 1.5±0.10 | 3.9±0.10 | 15.77 | |
| SYV-75-3 | 7/0.17 | 0.51 | 3.0±0.15 | 3.0±0.25 | 11.79 | |
| SYV-75-5-1 | 1/0.72 | 0.27 | 4.6±0.20 | 7.1±0.30 | 76.56 | |
| SYV-75-5-2 | 7/0.26 | 0.73 | 4.6±0.20 | 7.1±0.30 | 76.37 | |
| SYV-75-7 | 7/0.4 | 1.2 | 7.3±0.25 | 10.2±0.30 | 150.72 | |
| SYV-75-9 | 7/1.37 | 1.37 | 9.0±0.30 | 12.4±0.40 | 212.59 | |
| SYV-75-12 | 7/0.64 | 1.92 | 11.5±0.40 | 15.0±0.50 | 301.36 | |
| SYV-75-15 | 7/0.82 | 2.46 | 15±0.50 | 19.0±0.50 | 444.99 | |
| SYV-75-17 | 7/0.95 | 2.85 | 17.3±0.70 | 22.2±0.60 | 645.12 | |
| SYV-75-23-1 | 7/1.27 | 3.81 | 23±1.0 | 28.8±0.70 | 1038.2 | |
| SYV-75-28-1 | 7/1.5 | 4.5 | 28±1.0 | 34.5±0.80 | 1450.57 | |
| SYV-100-7 | 1/0.6 | 0.6 | 7.3±0.25 | 10.2±0.30 | 143.52 | |
| SWY-50-1 | 1/0.09 | 0.27 | 0.87±0.05 | 1.9±0.10 | 7.01 | |
| SWY-50-2-1 | 7/0.15 | 0.45 | 1.5±0.10 | 2.9±0.10 | 14.11 | |
| SWY-50-2-2 | 7/0.68 | 0.68 | 2.2±0.10 | 4.0±0.20 | 28.58 | |
| SWY-50-3 | 1/0.90 | 0.9 | 3.0±0.15 | 5.0±0.25 | 41.94 | |
| SWY-50-5-1 | 1/1.37 | 1.37 | 4.0±0.2 | 7.0±0.30 | 76.54 | |
| SWY-50-5-2 | 1/1.37 | 1.37 | 4.6±0.2 | 7.8±0.30 | 112.3 | |
| SWY-50-7-1 | 7/0.76 | 2.28 | 7.3±0.25 | 10.2±0.30 | 157.05 | |
